Name: Astell&amp;Kern - A&amp;futura, SE180
SKU: DGHLC 7158694084764
Availability: InStock

New

Original price was: $351.00.Current price is: $98.99.

SKU: DGHLC 7158694084764 Categories: DAP, Personal Audio Tags: Astell&Kern, Audio, DAP, Personal Audio

Experience Quality, Shop with Us
Guaranteed High Quality
Product guarantee 100% satisfaction
Your needs, our top priority.

Description
Reviews (0)

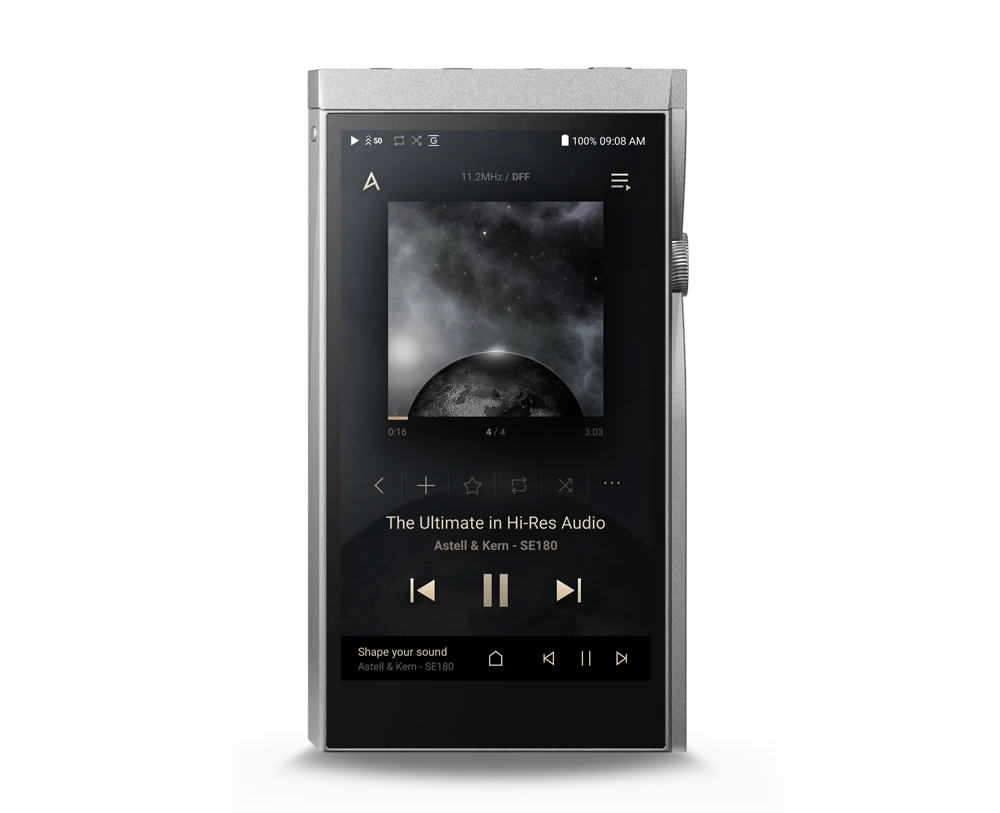

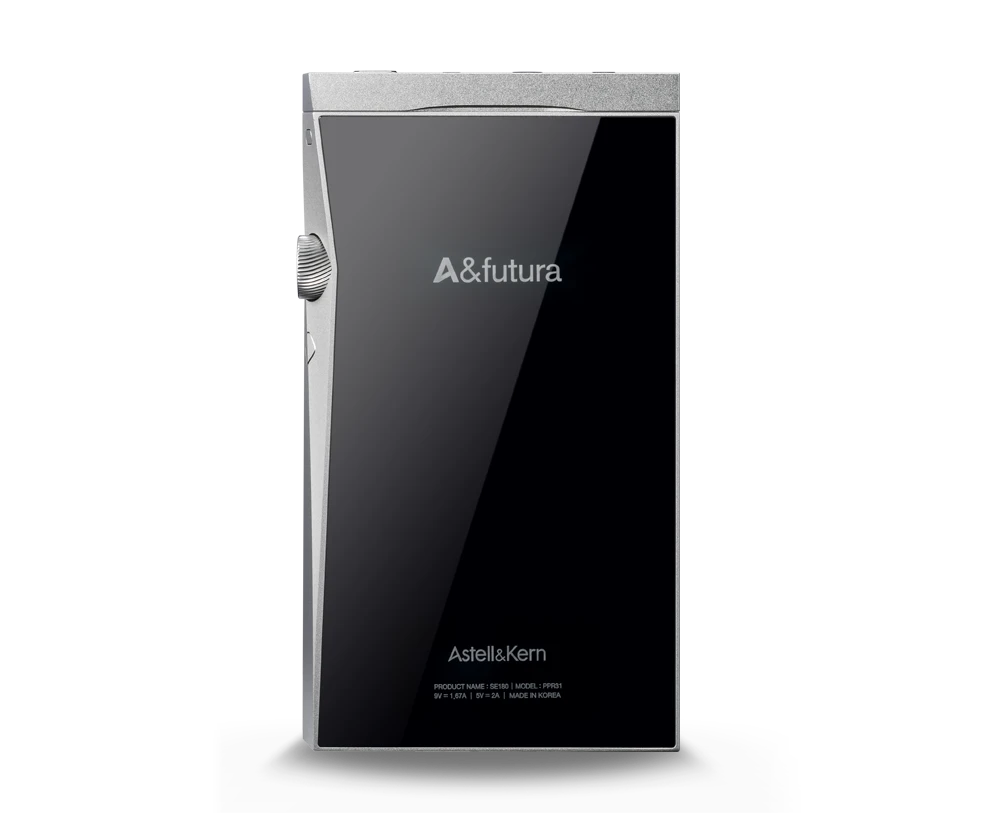

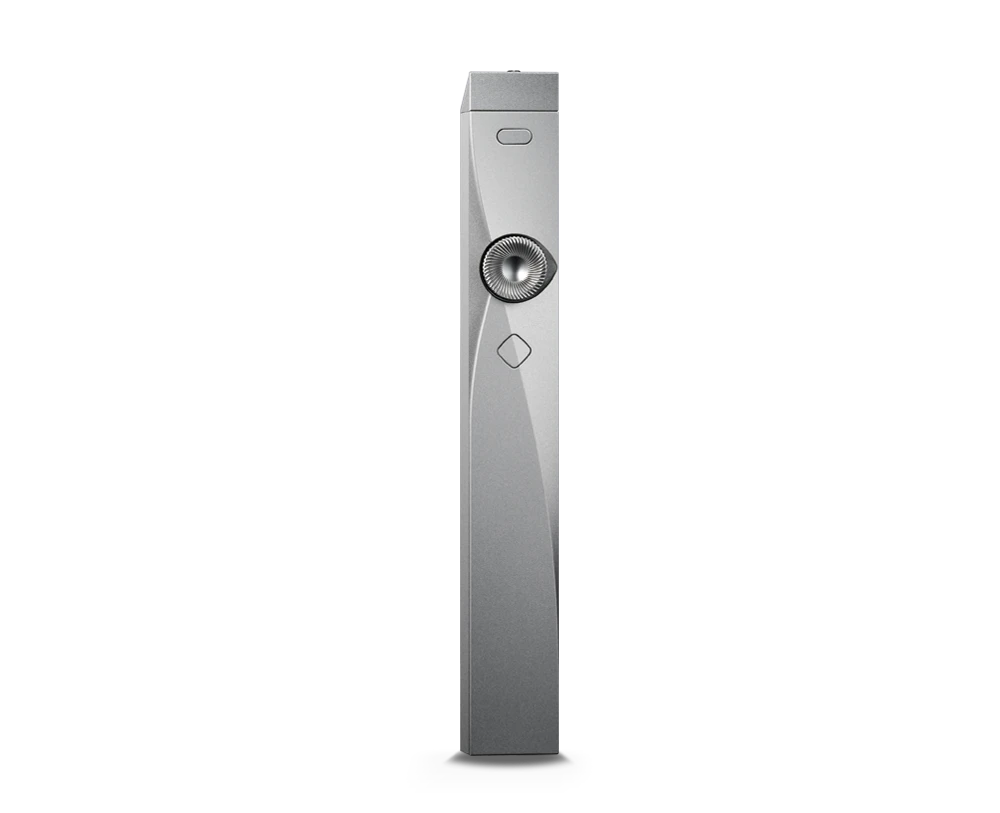

SE180 Combines Innovation and Fun

The third product in the A&futura line, the SE180, continues the trend of exciting innovation for Astell&Kern products,
while providing the uncompromised sound quality Astell&Kern is famous for.

With the SE180, in addition to superb audio technology, we wanted to show users an element of fun that is hard to find
in most Hi-Fi products.

The DNA of innovation found in the A&futura line continues with the SE180.
It is an advanced audio system created with the technology Astell&Kern is known for around the world.

Interchangeable All-in-One Module
TERATON ALPHA Audio Technology from Astell&Kern
Next Generation Astell&Kern AMP Technology
Updated UI with Added Functions for Convenience

With the SE180, premium Hi-Fi Sound is now available through the use of interchangeable, all-in-one modules, by Astell&Kern.

SE180 Specification

General Specifications

Model

SE180

Body Color

Moon Silver

Body Material

Aluminum

Display

5.0inch 1920×1080 FHD

Supported Audio Formats

WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA

MQA playback

Services(Tidal Masters), Local files, External USB, MQA-CD(ripped)

Input

USB Type-C input (for PC & MAC)

Charging

9V 1.67A / 5V 2A

Wi-Fi

802.11 b/g/n (2.4GHz)

Bluetooth

V5.0 (A2DP, AVRCP, Qualcomm^® aptX^TM HD, LDAC)

Dimensions

3.03 ”(77 mm) [W] x 5.09 ”(129.2 mm) [H] x 0.78 ”(19.9 mm) [D] (Only body)
3.03 ”(77 mm) [W] x 5.4 ”(137.2 mm) [H] x 0.78 ”(19.9 mm) [D] (Combined with a module)

Weight

9.88 oz (280 g)

Feature Enhancements

Firmware upgrades supported (OTA)

SAR

Body 10g SAR (W/Kg) _ WLAN 2.4Ghz : 0.016

Wheel

LED Light (LED Indicator)

Battery

Capacity

3,800mAh 3.8V Li-Polymer Battery

Charge Time

about 5hours (Standard : 5V / 2A Charging), about 3hours (Fast : 9V / 1.67A Charging)

Memory

Built-in Memory

256GB [NAND]

External Memory

microSD (Max. 1TB) x1

OS

Supported OS

Windows 8,10(32/64bit) Mac OS X 10.7 and up

Clock source

Clock Jitter

25ps(Typ)

Reference Clock Jitter

800 Femto Seconds

SEM1 Specification

Model

SEM1

Body Color

Moon Silver

Body Material

Aluminum, Stainless Steel, Polycarbonate

Sample Rate

PCM: 8kHz ~ 384kHz (8/16/24/32bits per Sample) DSD Native: DSD64(1bit 2.8MHz), Stereo
/ DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo

Outputs

Unbalanced Out (3.5mm), Balanced Out (2.5mm, only 4-pole supported
/ 4.4mm, only 5-pole supported)

Output Level

[Normal Gain] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load)[High Gain] Unbalanced 3Vrms / Balanced 6Vrms (Condition No Load)

DAC

ESS ES9038PRO (Single DAC)

Decoding

Support up to 32bit / 384kHz Bit-to-Bit playback

Dimensions

3.03 ”(77 mm) [W] x 2.99 ”(76 mm) [H] x 0.78 ”(19.9 mm) [D]

Weight

3.53 oz (100 g)

Playback Time

about 10.5hours (FLAC, 16bit, 44.1kHz, Vol.50, LCD Off)

Audio Performance

Frequency Response

±0.04dB (Condition : 20Hz~20kHz) Unbalanced / ±0.04dB (Condition : 20Hz~20kHz) Balanced
±0.07dB (Condition : 20Hz~70kHz) Unbalanced / ±0.06dB (Condition : 20Hz~70kHz) Balanced

Signal to Noise Ratio

[Normal Gain] 122dB @ 1kHz, Unbalanced / 126dB @ 1kHz, Balanced
/ [High Gain] 125dB @ 1kHz, Unbalanced / 129dB @ 1kHz, Balanced

Crosstalk

[Normal Gain] -138dB @ 1kHz, Unbalanced / -145dB @ 1kHz, Balanced
/ [High Gain] -138dB @ 1kHz, Unbalanced / -147dB @ 1kHz, Balanced

THD+N

[Normal Gain] 0.0005% @ 1kHz, Unbalanced / 0.0004% @ 1kHz, Balanced
/ [High Gain] 0.0007% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced

IMD SMPTE

0.0004%, 800Hz 10kHz (4:1), Unbalanced / 0.0004%, 800Hz 10kHz (4:1), Balanced

Output Impedance

3.5mm (1ohm) / 2.5mm (1.5ohm) / 4.4mm (1.5ohm)
