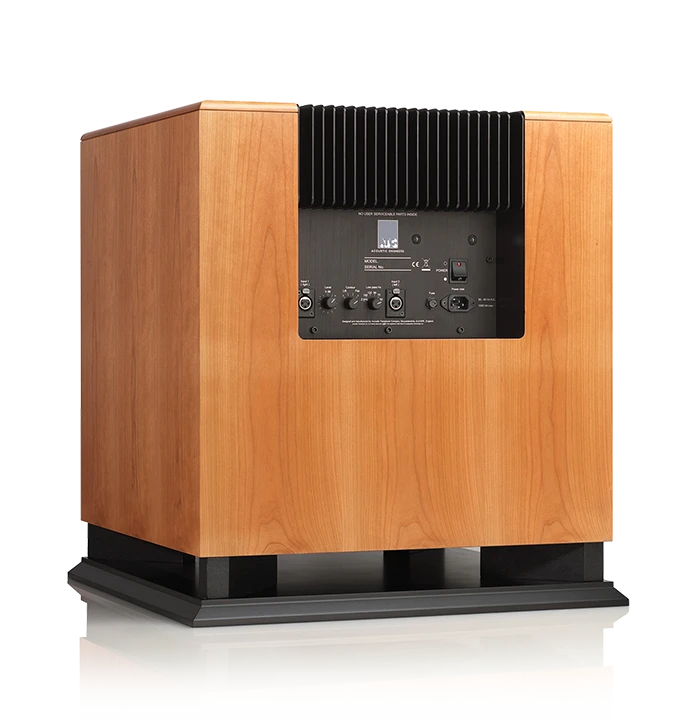

ATC – C4 Sub

ATC – C4 Sub

Description:

• Full “SL” spec 12˝/314mm bass driver.
• 450W Class G amplifier.
• Phase adjustment.
• Variable cut off frequency.
• Variable gain.
• Stereo inputs.
• 6 year warranty.

Specifications:

• Drivers: 314mm (12″)
• Cut-off Frequencies (-3dB free standing): 18Hz & 250Hz
• Max Continuous SPL: 112dB SPL @ 1 metre
• Input Connectors: 2 xMale XLR
• Input Sensitivity: 1V Balanced
• Input Impedance: >10k Ohms
• Common Mode Rejection: >90dB
• Harmonic Distortion (amplifier): <0.01%
• Amplifier Output
• Continuous: 450 Watts RMS
• Dynamic: 1000 Watts
• Overload Protection: Active FET momentary gain reduction
• Gain Control Range: ±6dB
• Contour Equaliser: 6dB lift @ 40 – 60Hz
• Filter Characteristics: 50Hz, 70Hz, 90Hz, 120Hz, 180Hz low pass 2nd order critically damped
• Power Requirements: 100, 115, 230V (factory set for territory), 50/60Hz
• Cabinet Dimensions (HxWxD): 581 x 530 x 530mm (22.9″ x 20.9″ x 20.9″)
• Overall Weight: 68kg (150lb)
• Cabinet Finish: Standard real wood veneers are available in Black Ash, Mahogany, Cherry and Natural Oak.
