TIMBRE SERIES CARTRIDGES

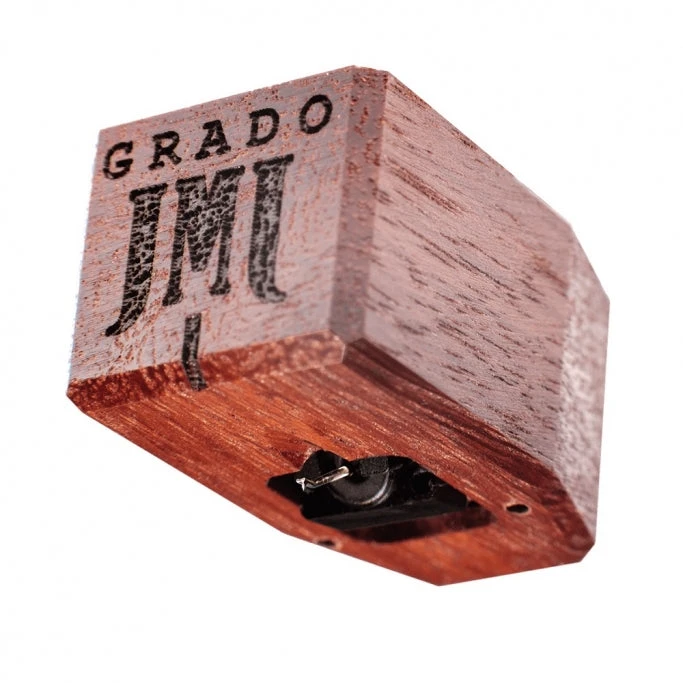

The first step-up from the Opus3, the Platinum3 puts Jarrahwood and a twin magnet system to work for your favorite music.
Timbre in a Nutshell. / Hear More
The Platinum3 is a great example of what the Timbre Series is made for: to start listening to your music with more clarity and depth than you’ve heard before.
Small Necessities. / The Materials
To make the Timbre Series work as a whole, we created a way for Jarrah, diamonds, and a twin magnet system to integrate with our Flux-Bridge™. We modified our four-piece OTL cantilever technology to achieve a 10% tip mass reduction over the Prestige Series and use ultra-high purity long crystal (UHPLC) oxygen-free copper wire in the coils. The Platinum3 uses a specially Grado-designed elliptical diamond.
- Body: Australian Jarrah Wood
- Cantileaver: Aluminum / Elliptical Diamond
- Output:
High 4.0mV @5 CMV (45)
Low 1.0mV @5 CMV (45) - Inductance:
High Output 55mH
Low Output 6mH - Resistance:
High Output 660 ohms
Low Output 70 ohms
- Input Load: 10k-47k ohms
- Cartridge Weight: 9 grams
- Tracking Force: 1.6-1.9 grams
- Compliance 20μm/mN
- Channel Separation: Average 30db – 10-30k Hz
- Controlled Frequency Response: 10-60 KHz
- Non-Sensative to Capacitive Load
- Builds: High Output, Low Output, Mono
